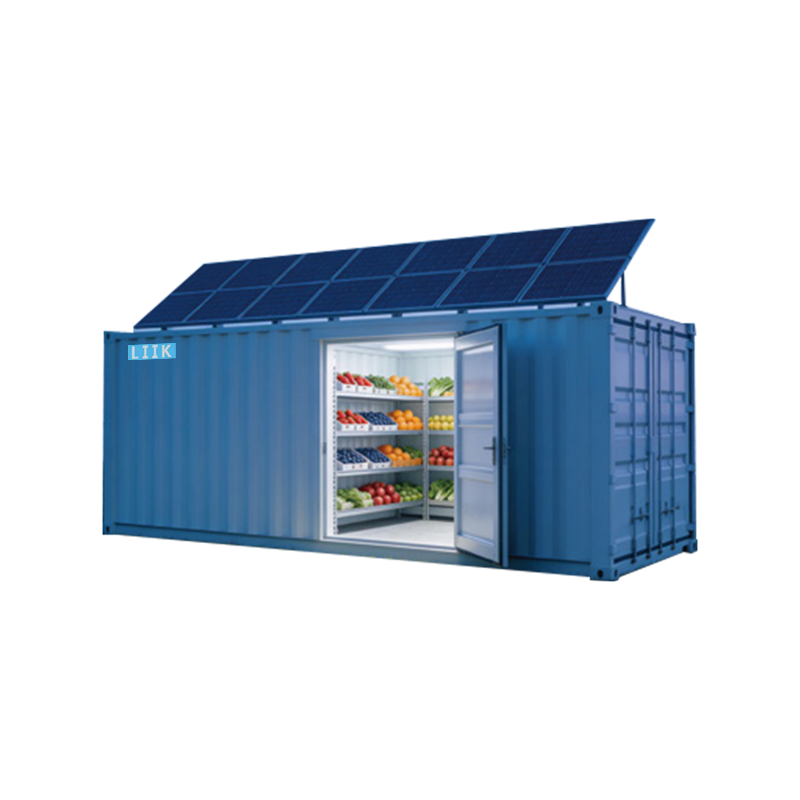

Solar-powered Mobile Cold room

Photovoltaic Cold Storage Retrofit in Standard Container

20-Foot Standard Container 40-Foot Standard Container

Container

Size

L(mm)

6058 12192

W(mm)

2438

H(mm)

2591

Solar Panel

Size

L(mm)

2384

Parameter Basis: Light intensity is 1000W/m², ambient temperature is 20℃, and air quality is 1.5.

W(mm)

1303

H(mm)

33

Power

W/PCS

700

Voltage

V/PCS

40

QTY

PCS

6 10

Total output power

KW

4.2 7

PV Inverter

Controller

Model

48V 6.2KW 48V 12KW

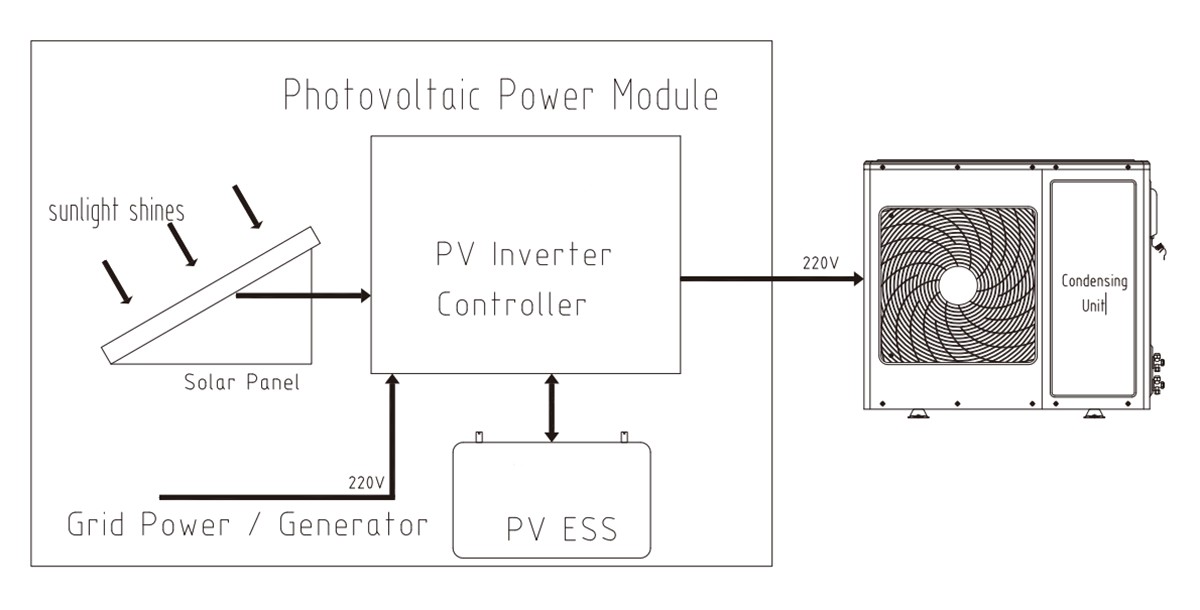

Power Supply Mode: PBG Mode Solar power supplies the load first. Excess energy is used to charge the battery; When solar power is insufficient to meet load demand, the battery will discharge to supply power together with solar; If both solar and battery power are insufficient, the grid will automatically supplement the load supply.

PV input

Voltage V

120~850

Electric current A

≤180

AC Mains & Generator Input

Voltage V

170~280AC

Electric current A

≤100

Frequency Hz

50/60

Battery Input

Voltage V

40-60DC

Electric current A

≤180

Output

Voltage V

220

Frequency Hz

50/60

Max output power W

6200 12000

Output Waveform

Pure Sine Wave

PV ESS

Model

48V 200AH 51.2V 300AH

Nighttime Continuous Power Supply≥3.5h

Air-Cooled Inverter

Model

YC030SF  YC060SF

Parameter Basis: Condensing Temperature 45℃, Evaporating Temperature 0℃

Capacity

KW

7.52 14.55

Power

KW

2.6  5.18

Condensing Unit

Voltage

220V 50Hz

Refrigerant

R410A

Evaporator

Model

YC0100DL YC0190DL

Capacity

KW

10 19

Power

W

170 380

Air Flow

m³

3600 7200

Air Throw

m

7-10 10-12

Daytime Operation: Under good sunlight conditions, the system achieves 100%photovoltaic-powered operation for 8hours, with solar energy directly supplying the load and excess power charging the battery storage

Nighttime Power Supply: The energy storage system provides continuous power supply for more than 3 hours, ensuring uninterrupted refrigeration during off-sunlight periods.

Daily Energy Saving: The system achieves an energy saving rate of 45%on a daily basis under ideal conditions, significantly reducing grid electricity consumption.

Annual Energy Saving Projection: Based on seasonal irradiance variations and operational cycles, the system is expected to achieve an average annual energy saving ofover 30%, making it highly efficient for long-term cold chain applications.

Parameter Basis: Light intensity is 1000W/m², ambient temperature is 20℃, and air quality is 1.5
