Digital Scrolll Condensing Unit
Technical Features
Worry-free Maintenance
Smart Frequency Reduction
Powerful Refrigeration
Energy-efficient & Low-noise Operation
Supports Multi-unit Expansion
Constant Temperature
Functional Advantages
Remote Monitoring of Parameters
Load-Based Proportional Modulation
High Reliability and Energy Efficiency
Intelligent Continuous Capacity Regulation and Unloading System
Oil Return Problem Resolution
IoT-Based Remote Energy-Saving Control
- Product Description
+86-18082061600

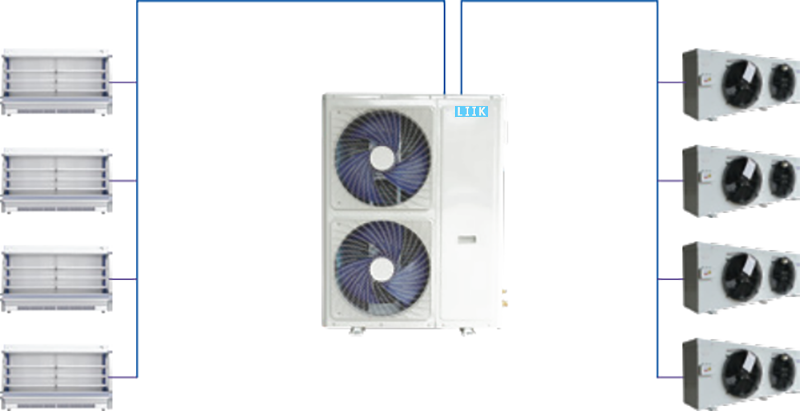

One-to-Multi Display Cabinet/Cold Storage
|
Digital Scroll Condensing Unit |
||||||
|
Model |
L400S |
L500S |
L600S |
L700S |
L1000S |
|
|
Nominal cooling capacity(KW) |
-7℃ Evaporating Temp |
8.14 |
9.85 |
11.61 |
13.12 |
17.95 |
|
Input Power(KW) |
3.35 |
3.98 |
4.74 |
5.4 |
7.63 |
|
|
Nominal cooling capacity(KW) |
-25℃ Evaporating Temp |
5.52 |
6.23 |
6.66 |
7.28 |
10.32 |
|
Input Power(KW) |
3.17 |
3.68 |
4.24 |
4.71 |
6.52 |
|
|
Cold storage temperature |
-18℃~10℃ |
|||||
|
Max. number of connected evaporators ≤(specify quantity) |
3 |
3 |
4 |
4 |
4 |
|
|
Operating Mode |
Unloading Start-Stop |
|||||
|
Voltage |
220V/380V |
380V |
380V |
380V |
380V |
|
|
Compressor |
Type |
Fully Enclosed Scroll Compressor |
||||
|
Refrigerant |
R404/R507 |
R404/R507 |
R404/R507 |
R404/R507 |
R404/R507 |
|
|
Quantity |
1 |
1 |
1 |
1 |
1 |
|
|
Fan Motor |
Type |
EC |
EC |
EC |
EC |
EC |
|
Quantity |
1 |
2 |
2 |
2 |
2 |
|
|
Power(W) |
85 |
170 |
170 |
170 |
480 |
|
|
Outdoor Unit |
Air Outlet Mode |
Side Discharge |
Side Discharge |
Side Discharge |
Side Discharge |
Top Air Discharge |
|
Condensing Type |
Air-cooled |
Air-cooled |
Air-cooled |
Air-cooled |
Air-cooled |
|
|
Throttling Method |
||||||

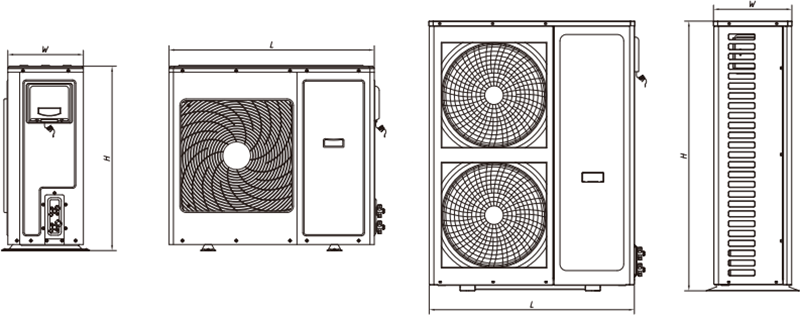

Dimensions of Outdoor Unit Outline Drawing
|
Code |
Condensing unit dimensions |
||
|
L(mm) |
W(mm) |
H(mm) |
|
|
200S-400S |
950 |
360 |
850 |
|
500S-600S |
950 |
360 |
1240 |
|
800S |
1000 |
390 |
1380 |
-
